Economy X-Switch
Costs less, and includes most of the excellent features you would get on the Premium X-Switch.
 |
Clear, understandable labels
Clear, simple instructions
One-line diagram for the user, with another copy inside for the installer Cutler-Hammer breakers U.L. Listed |
*For standard levels of protection against incorrect operation, the Economy X-Switch offers optional SKRU and Kirk Keys.
| 120/208 Volt 3 Phase | 2 Breaker X-Switch | 3 Breaker X-Switch | ||||
| Rated Amps |
Maximum UPS kVA with Diagrams 1&2 (see note* for Diagrams 3&4) |
kAIC |
Model # |
Dimensions W x H x D |
Model # Replace X with: K = 2 Kirk Keys S = SKRU + 2 Kirk Keys X = No SKRU, Kirk keys C = Complete: SKRU + 4 Kirk Keys |
Dimensions W x H x D |
| 40 | 12 | 14 | XSE2-40-2CS-X | 20 x 20 x 9 | XSE3-40-2CS-X | 24 x 37 x 9 |
| 60 |
17 |
14 | XSE2-60-2CS-X | " | XSE3-60-2CS-X | " |
| 80 | 23 | 14 | XSE2-80-2CS-X | " | XSE3-80-2CS-X | " |
| 100 | 29 | 14 | XSE2-100-2CS-X | 30 x 25 x 12 | XSE3-100-2CS-X | 30 x 42 x 12 |
| 125 | 36 | 65 | XSE2-125-2CS-X | " | XSE3-125-2CS-X | " |
| 150 | 43 | 65 | XSE2-150-2CS-X | " | XSE3-150-2CS-X | " |
| 225 | 65 | 65 | XSE2-225-2CS-X | " | XSE3-225-2CS-X | " |
| 300 | 86 | 65 | XSE2-300-2CS-X | " | XSE3-300-2CS-X | " |
| 350 | 101 | 65 | XSE2-350-2CS-X | 36 x 38 x 12 | XSE3-350-2CS-X | 36 x 61 x 12 |
| 480 Volt 3 Phase | 2 Breaker X-Switch | 3 Breaker X-Switch | ||||
| Rated Amps |
Maximum UPS kVA with Diagrams 1&2 (see note* for Diagrams 3&4) |
kAIC | Model # Replace X with: K = 2 Kirk Keys S = SKRU + 2 Kirk Keys X = No SKRU, Kirk keys C = Complete: SKRU + 4 Kirk Keys |
Dimensions W x H x D |
Model # Replace X with: K = 2 Kirk Keys S = SKRU + 2 Kirk Keys X = No SKRU, Kirk keys C = Complete: SKRU + 4 Kirk Keys |
Dimensions W x H x D |
| 40 | 27 | 14 | XSE2-40-4CS-X | 20 x 20 x 9 |
XSE3-40-4CS-X | 24 x 37 x 9 |
| 60 | 40 | 14 | XSE2-60-4CS-X | " | XSE3-60-4CS-X | " |
| 80 | 53 | 14 | XSE2-80-4CS-X | " | XSE3-80-4CS-X | " |
| 100 | 67 | 14 | XSE2-100-4CS-X | " | XSE3-100-4CS-X | " |
| 125 | 83 | 35 | XSE2-125-4CS-X | 30 x 25 x 12 |
XSE3-125-4CS-X | 30 x 42 x 12 |
| 150 | 100 | 35 | XSE2-150-4CS-X | " | XSE3-150-4CS-X | " |
| 225 | 150 | 35 | XSE2-225-4CS-X | " | XSE3-225-4CS-X | " |
| 300 | 200 | 35 | XSE2-300-4CS-X | XSE3-300-4CS-X | " | |
| 350 | 233 | 35 | XSE2-350-4CS-X | XSE3-350-4CS-X | 36 x 61 x 12 | |
| 500 | 333 | 35 | XSE2-500-4CS-X | XSE3-500-4CS-X | 38 x 70 x 12 |
|
| 600 | 400 | 35 | XSE2-600-4CS-X | |
XSE3-600-4CS-X | " |
*Important Note - Sizing Caution! If an X-Switch supplies power into the UPS Main Input (Rectifier) as shown in Diagram 3 or 4, determine the UPS's Maximum Input Current, add 25%, and select the correct X-Switch based on the "Rated Amps" column instead of the kVA.
Call 877-9000-877 for help - We have all the Charts!
|

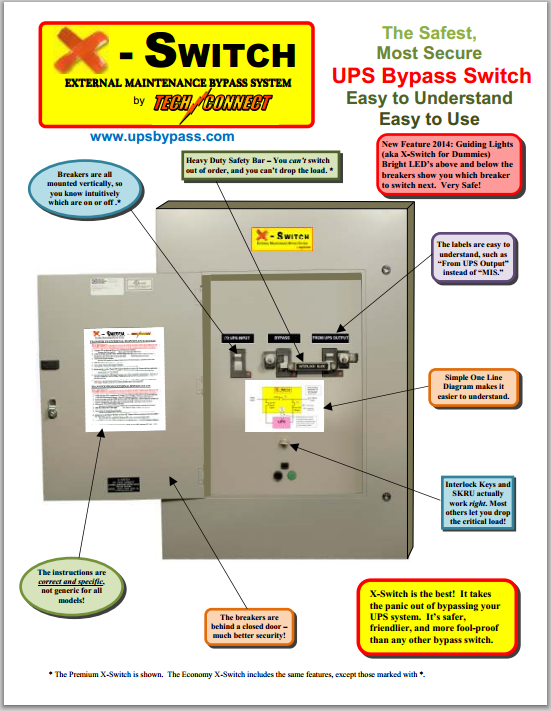

Flyer and Technical Specs Click to open (right click to download): X-Switch Flyer (.pdf) Economy X-Switch Specifications (.pdf)
|
Interlock Keys SKRU Solenoid Release Unit TVSS, Heavy Duty, Built-in Floor Standing Cabinet High or Extra High kAIC Ratings Internal Transformer Sub Panel Distribution Breakers Rack Mountable |
